Home right arrow Food right arrow FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
FSA Grain Moisture Meter
Food

FSA Grain Moisture Meter

Fully automatic whole grain moisture analyser with integrated determination of hectrolitre weight and infrared sample temperature measurement
  • Calibratable grain moisture meter
  • High-accurate whole grain measurement within seconds
  • tamper proof
  • For all products and finished goods
  • Calibration accuracy +/- 0,4%
  • Ethernet and USB interface
  • farm moisture meter with a large color touch display
  • Lifetime Support
Article no.: 13000
Available immediately
Inquiry

Description

The fully automatic FSA Whole grain grain moisture meter meets the highest accuracy requirements when it comes to water content determination, hectoliter weight determination and temperature measurement of grains, beans, rice and many other products. The measuring device enables grain samples to be analyzed in just a few seconds. Using the integrated printer, a receipt with all relevant data is printed out immediately after the measurement.

Areas of Application:

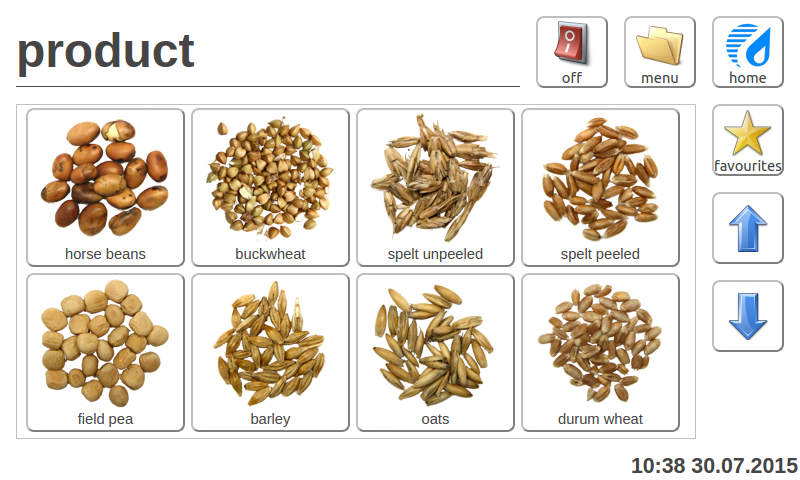

The device is calibrated for maize, rye, triticale, wheat, durum wheat, peeled buckwheat, peeled and unpeeled spelt, peeled and unpeeled millet, sorghum millet, spring and winter barley, oats, rape, soybeans, horse beans, sunflower seeds, pumpkin seeds, peeled rice, linseed, field peas and scarlet runner beans.

Other products on request, also for special products characteristic curves for the FSA moisture meter can be recorded in our in-house laboratory!

The measuring device is adjusted after calibration to the reference method

  • EN ISO 6540 for corn
  • EN ISO 665 for oilseeds
  • EN ISO 712 for grain
  • EN ISO 24557 for legumes and beans

Advantages

  • Menu language in English, German, Italian, French, Spanish, Portuguese, Slovenian, Hungarian, Polish, Romanian and Russian
  • On request calibration of special products by the manufacturer possible
  • For all products and finished goods
  • Very fast and accurate whole grain moisture measurement
  • Determination of hectoliter weight within seconds
  • The large touch display enables easy, convenient and quick operation of the FSA whole grain measuring device
  • Quality product handmade in Austria

Technical Specifications (Optimized)

Measuring range 3 to 50% water content (depending on product type)
Resolution 0,01%
Calibration accuracy to reference material +/- 0,3%
Hectoliter measurement kg/hl
Infrared temperature compensation Automatically
Measurement result Within seconds without sample preparation
Memory function Online function, datalog for 1.000.000 values with measuring point report
Calibration Customer-specific calibration for special fruits, granulates, etc. possible
Data interfaces Ethernet, USB, rest interface
Dimensions 440 x 310 x 430 mm
Weight 15 kg
offset function Adjustment of the calibration curve
Menu languages English, German, Italian, French, Spanish, Portuguese, Slovenian, Hungarian, Polish, Russian, Romanian, Czech, Slovak

Further information

  • Folder FSA
  • Instruction manual FSA
Florian Postl
Head of Sales and Product Management
Do you have any questions about our products? I would be happy to advise you personally!
your advice

Handling and measurement process

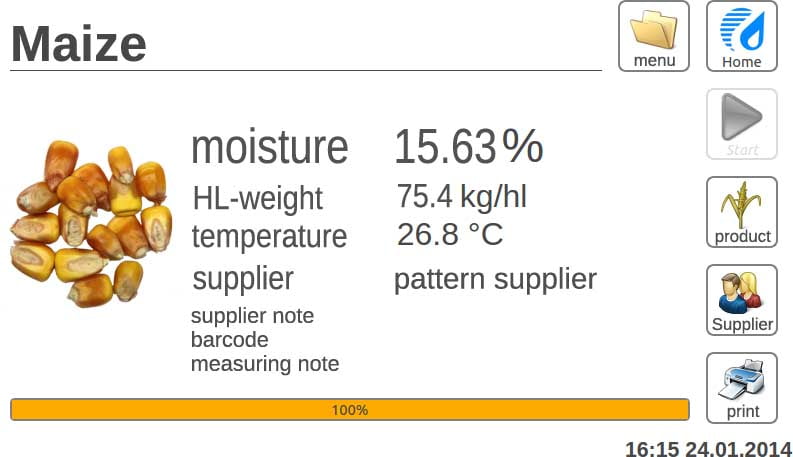

Fill your sample into the filling funnel and start the measurement. The grain moisture meter automatically takes a representative and statically distributed sample quantity from the material to be measured and determines the required measured values ​​in just a few seconds. Once you have finished measuring, you can simply empty the grain into the material drawer and measure a new sample.

Use in practice:
The fully automatic whole grain moisture meter FSA is perfectly suited for use in agriculture, trade, seed breeding, research, laboratories as well as the food and feed industry. Regardless of the application, it meets the highest accuracy requirements and is an indispensable measuring instrument for your quality control and assurance.
