climate / environment

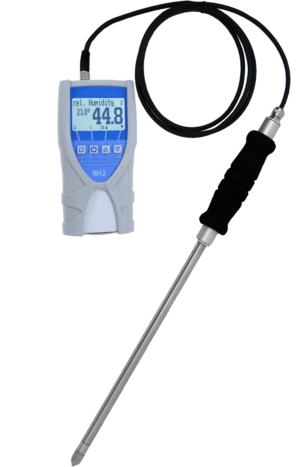

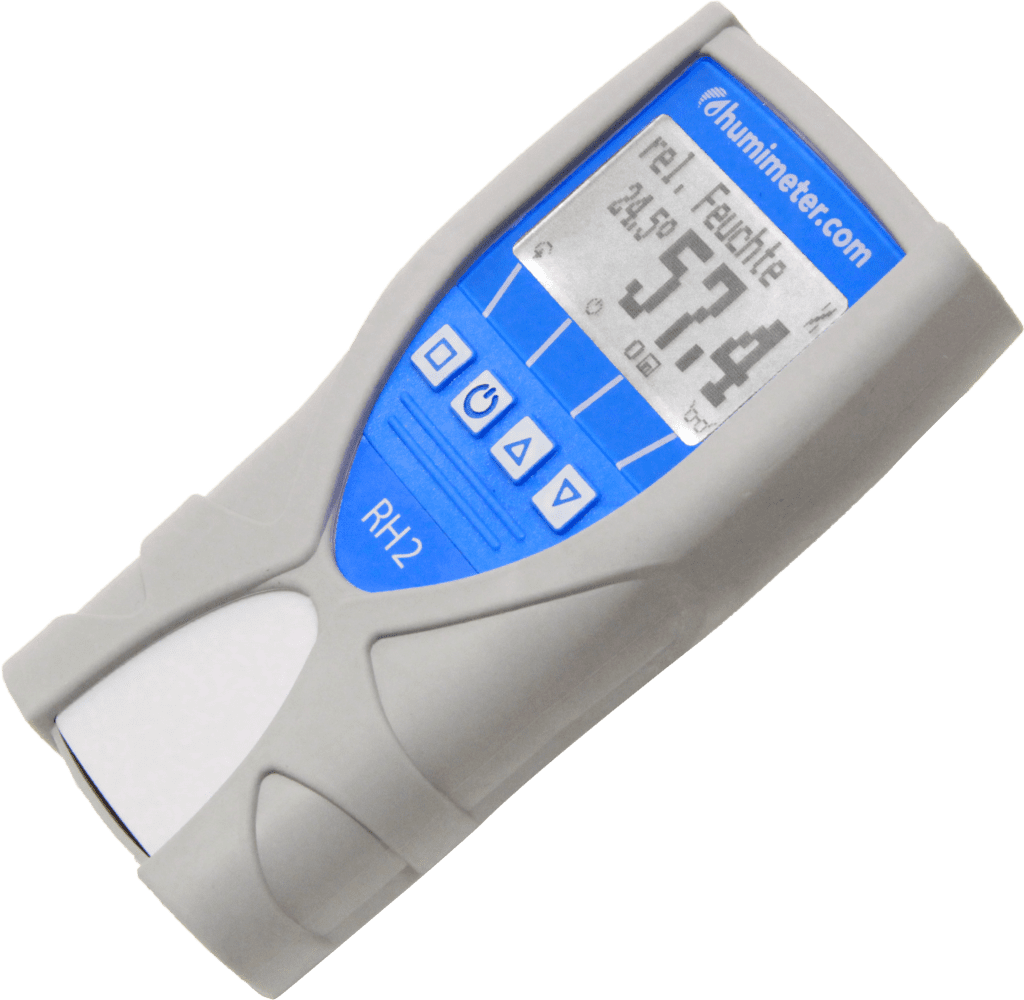

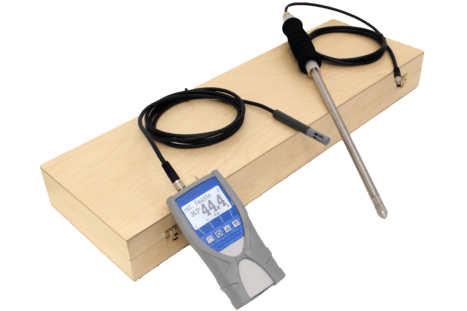

humimeter RH2 Climate precision moisture analyzer

Water activity tester with data logger for laboratory, climate and environmental applications as well as aw value measurements

Long-term stable humidity and temperature sensors
Various sensor types can be selected separately
Auto data logger up to 10.000 values with measurement location description
Lifetime Support

Article no.: 12005

Available immediately

Inquiry

Description

The water activity meter offers a selection of different long-term stable sensors. The area of application ranges from measuring the air humidity and determining the relative material moisture using a material moisture sensor to determining the water activity value in various foods.

The humimeter RH2 can also be connected to an infrared (IR) temperature sensor for remote non-contact temperature measurement.

The humimeter RH2 Hand-held thermo-hygrometer measures relative humidity, absolute humidity, dew point, equilibrium humidity, aw value and temperature.

Advantages

Aw-value, Relative humidity, absolute humidity, dew point, equilibrium moisture content
Very fast adjustment behavior
Long stable humidity- and temperature sensors
Easy data storage on the portable moisture meter
Optimal documentation of your quality
water activity determination

Technical Specifications (Optimized)

Relative humidity	Measuring range see sensor, resolution 0,1% RH
Temperature	Measuring range see sensor, resolution 0,1 °C
Dew point	-55 to +60°C, -67 to 140°F
Absolute humidity	0 to 130 g/m³, resolution 0,1 g/m³
Equilibrium wood moisture content	2 to 30%, resolution 0,1%
Equilibrium moisture content granules	Resolution 0,01%
Aw value, Water activity	Resolution 0,001
Memory function	Online function, hold function, manual datalog
Automatic datalog	Datalog for 10.000 values with measuring point report
Dimensions	145 x 75 x 30 mm
Weight	210 g (including batteries)
Power Supply	4 x 1,5 Volt AA Alkaline batteries
Menu languages	English, German, Italian, French, Spanish, Portuguese, Czech, Polish, Russian, International

Further information

Florian Postl

Head of Sales and Product Management

Do you have any questions about our products? I would be happy to advise you personally!

your advice

Handling and measurement process

Measure the room climate with the humimeter RH2 Thermohygrometer by placing the climate measuring device or the sensor in the room and reading your required measurements after a short adjustment period. In addition, a data logger for temperature and humidity is integrated into the moisture meter. Use this to carry out long-term room climate monitoring or similar applications.

Support

Stefanie Gsöls

Internal sales office

"We are here for you! It doesn't matter whether you have questions about the measurement process, calibration, accessories or technology, we're happy to help personally!"

Feel free to contact us:

0043 3178 28899

info@schaller-gmbh.at

Lifetime Support
10 year repair guarantee

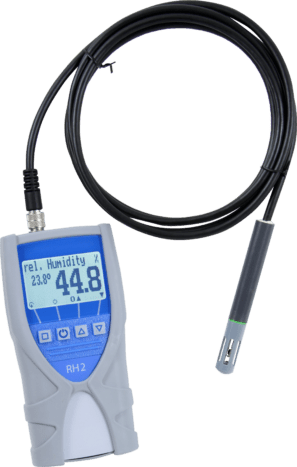

Humidity and temperature sensors

with 2 meter connection cable

relative humidity 0 to 100% RH
Calibration 10 to 90% +/- 2,0% RH (at 25°C)

Humidity and temperature sensor

for humimeter GF2 and RH2

relative humidity 0 to 100% RH
Calibration 10 to 90% +/- 2,0% RH (at 25°C)

LF_TB 120 precision humidity temperature probe

LF_TB 120 precision moisture temperature probe for material moisture

relative humidity: 0 to 100% RH
Calibration: 10 to 90% +/- 1,5% RH (at 23 °C)

LF_TB 120 with special tube length

LF_TB 120 with special tube length Precision humidity temperature probe

relative humidity: 0 to 100% RH
Calibration: 10 to 90% +/- 1,5% RH (at 23°C)

IR temperature sensor

Non-contact IR temperature sensor for humimeter

IR temperature measurement -25 to +125°C
Measuring spot of 16 cm

Aw value measuring chamber set

Aw value measuring chamber and humidity temperature sensor with 2 meter connection cable

Incl. screw-top jars (186 & 245 ml) and lids
Incl. calibration ampoule set
Incl. factory calibration certificate
Incl. plastic case

Aw value measuring chamber and humidity temperature sensor

with 2 meter connection cable

Rapid adjustment behavior
quick measurement result

Aw value measuring cell set

with attachable humidity temperature sensor with 2 meter connection cable

Incl. plastic inserts 25 ml
Incl. calibration ampoule set
Incl. factory calibration certificate
Incl. plastic case

Aw value measuring cell

with attachable humidity-temperature sensor with 2 meter connecting cable: sensor with cell

Very fast adjustment behavior
quick measurement result

For high temperature applications
Analog output
For laboratory, climate conditioning and drying technology, wood processing industry, food and animal feed industry, building industry and paper industries
For paper and printing industry, agriculture, biotechnology and pharmaceutical industry

humidity transmitter LF-TD

LF-TD 60 digital humidity-temperature transmitter

industrial transmitter

Analog outputs
Long-term stable
Robust stainless steel sensor tube
Lifetime Support

humidity transmitter LF-TD

LF-TD-H Wood Moisture Transmitter

Online humidity transmitter

4-20mA analog output
For installation in closed systems
Lifetime Support

humidity transmitter LF-TD

LF-TD-TA humidity temperature transmitter

with analogue output

For maximum temperatures of 60°C
Standard 4-20mA output
Optional interfaces
Selectable humidity parameters
